为什么JVM内存占用小于Xms?

以下面这个命令启动:

1
java -server -Xms15g -Xmx15g -jar /app.jar

应用程序的内存占用会是多少?

周四的时候,同事突然问了一个问题,为什么设置了Xms=Xmx=15g之后,应用程序的内存占用远远小于Xms?

具体启动命令如下:

1
2
3
4
5
6
7
8
9
10
//为了方便查看,手动换行
java -server -Xms15g -Xmx15g
-XX:+UseConcMarkSweepGC
-XX:+CMSParallelRemarkEnabled
-XX:+UseCMSInitiatingOccupancyOnly
-XX:CMSInitiatingOccupancyFraction=77
-XX:+ScavengeBeforeFullGC
-XX:+CMSScavengeBeforeRemark
-Djava.security.egd=file:/dev/./urandom
-jar /app.jar --spring.profiles.active=prod

下面看一下真实的内存占用

先从系统层面看:

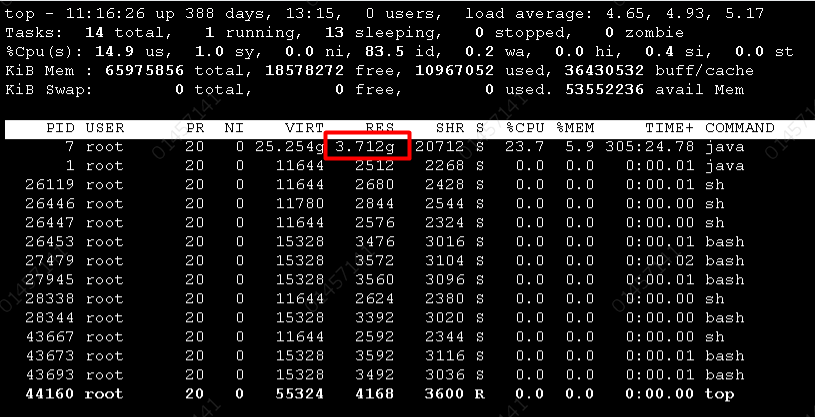

top:

free:

从系统层面可以看到,应用内存占用远小于Xms,难道是JVM参数没有生效?

下面借助arthas看一下JVM相关信息

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
 RUNTIME
---------------------------------------------------------------------------------------------------------------------------------------------------------------------
MACHINE-NAME 7@authserver-5fc5c7c775-9fs2m
JVM-START-TIME 2020-04-15 00:04:27
MANAGEMENT-SPEC-VERSION 1.2
SPEC-NAME Java Virtual Machine Specification
SPEC-VENDOR Oracle Corporation
SPEC-VERSION 1.8
VM-NAME Java HotSpot(TM) 64-Bit Server VM
VM-VENDOR Oracle Corporation
VM-VERSION 25.111-b14
INPUT-ARGUMENTS -javaagent:/var/agent/pinpoint-agent/pinpoint-bootstrap.jar
-Xms15g
-Xmx15g
-XX:+UseConcMarkSweepGC
-XX:+CMSParallelRemarkEnabled
-XX:+UseCMSInitiatingOccupancyOnly
-XX:CMSInitiatingOccupancyFraction=77
-XX:+ScavengeBeforeFullGC
-XX:+CMSScavengeBeforeRemark
-Djava.security.egd=file:/dev/./urandom

CLASS-PATH /app.jar:/var/agent/pinpoint-agent/pinpoint-bootstrap.jar
BOOT-CLASS-PATH /usr/java/jre1.8.0_111/lib/resources.jar:/usr/java/jre1.8.0_111/lib/rt.jar:/usr/java/jre1.8.0_111/lib/sunrsasign.jar
:/usr/java/jre1.8.0_111/lib/jsse.jar:/usr/java/jre1.8.0_111/lib/jce.jar:/usr/java/jre1.8.0_111/lib/charsets.jar:/usr
/java/jre1.8.0_111/lib/jfr.jar:/usr/java/jre1.8.0_111/classes
LIBRARY-PATH /usr/java/packages/lib/amd64:/usr/lib64:/lib64:/lib:/usr/lib

---------------------------------------------------------------------------------------------------------------------------------------------------------------------
CLASS-LOADING
---------------------------------------------------------------------------------------------------------------------------------------------------------------------
LOADED-CLASS-COUNT 21926
TOTAL-LOADED-CLASS-COUNT 21944
UNLOADED-CLASS-COUNT 18
IS-VERBOSE false

---------------------------------------------------------------------------------------------------------------------------------------------------------------------
COMPILATION
---------------------------------------------------------------------------------------------------------------------------------------------------------------------
NAME HotSpot 64-Bit Tiered Compilers
TOTAL-COMPILE-TIME 366850(ms)

---------------------------------------------------------------------------------------------------------------------------------------------------------------------
GARBAGE-COLLECTORS
---------------------------------------------------------------------------------------------------------------------------------------------------------------------
ParNew 1797/78247(ms)
[count/time]
ConcurrentMarkSweep 3/460(ms)
[count/time]

---------------------------------------------------------------------------------------------------------------------------------------------------------------------
MEMORY-MANAGERS
---------------------------------------------------------------------------------------------------------------------------------------------------------------------
CodeCacheManager Code Cache

Metaspace Manager Metaspace
Compressed Class Space

ParNew Par Eden Space
Par Survivor Space

ConcurrentMarkSweep Par Eden Space
Par Survivor Space
CMS Old Gen


---------------------------------------------------------------------------------------------------------------------------------------------------------------------
MEMORY
---------------------------------------------------------------------------------------------------------------------------------------------------------------------
HEAP-MEMORY-USAGE 15992750080(14.9 GiB)/16106127360(15.0 GiB)/15992750080(14.9 GiB)/2393542120(2.2 GiB)
[committed/init/max/used]
NO-HEAP-MEMORY-USAGE 255647744(243.8 MiB)/2555904(2.4 MiB)/-1(-1 B)/247922192(236.4 MiB)
[committed/init/max/used]
PENDING-FINALIZE-COUNT 0

---------------------------------------------------------------------------------------------------------------------------------------------------------------------
OPERATING-SYSTEM
---------------------------------------------------------------------------------------------------------------------------------------------------------------------
OS Linux
ARCH amd64
PROCESSORS-COUNT 16
LOAD-AVERAGE 5.08
VERSION 4.4.0-141-generic

---------------------------------------------------------------------------------------------------------------------------------------------------------------------
THREAD
---------------------------------------------------------------------------------------------------------------------------------------------------------------------
COUNT 256
DAEMON-COUNT 103
PEAK-COUNT 263
STARTED-COUNT 41467
DEADLOCK-COUNT 0

---------------------------------------------------------------------------------------------------------------------------------------------------------------------
FILE-DESCRIPTOR
---------------------------------------------------------------------------------------------------------------------------------------------------------------------
MAX-FILE-DESCRIPTOR-COUNT 1048576
OPEN-FILE-DESCRIPTOR-COUNT 811
Affect(row-cnt:0) cost in 6 ms.

注意HEAP-MEMORY-USAGE部分

1
HEAP-MEMORY-USAGE 15992750080(14.9 GiB)/16106127360(15.0 GiB)/15992750080(14.9 GiB)/2393542120(2.2 GiB) [committed/init/max/used]

从这里可以看到JVM参数是生效的,那为什么内存占用不是15g?
